The accumulator fixing clamp is a professional device specially designed for fixing the accumulator. It has the characteristics of compact structure, flexible connection and beautiful appearance. The company's products are divided into two types: NX and NXJ.
1. Product description

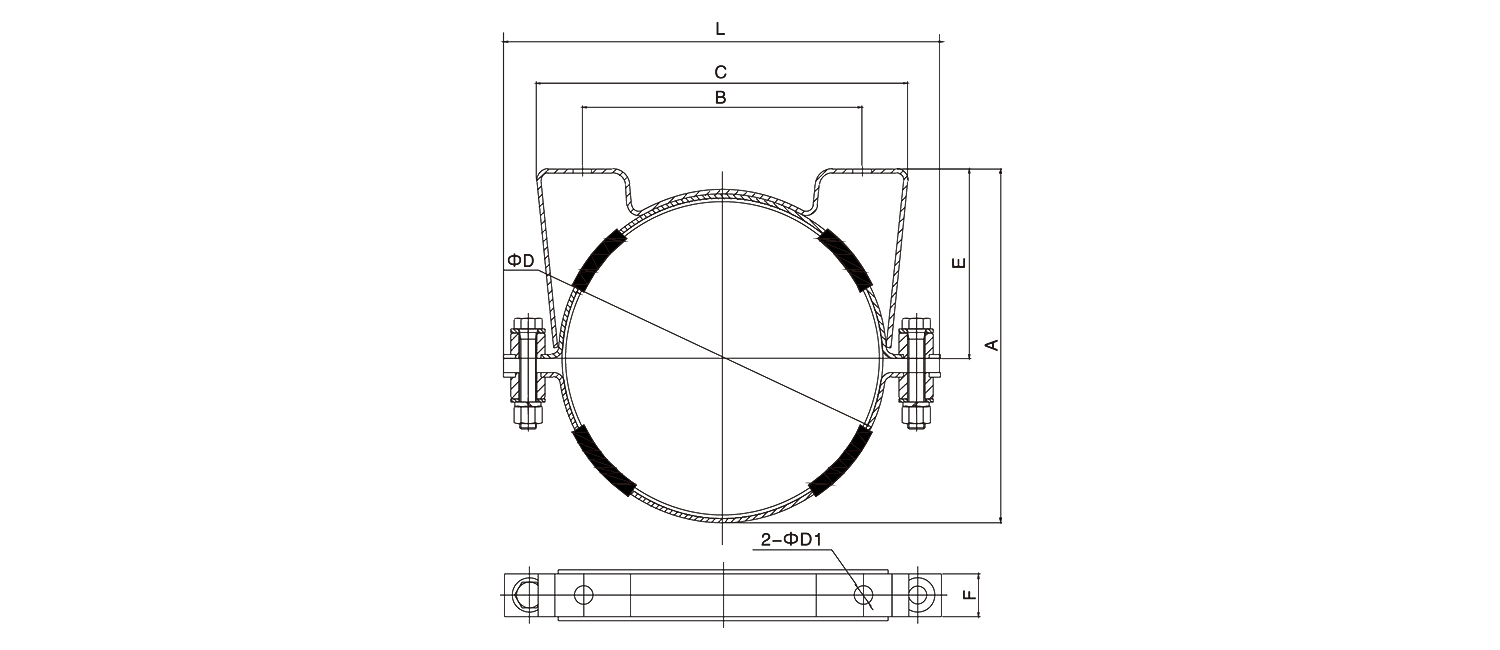

2. Structure and size specifications
|
model |
A |
B |
C |
ΦD |
ΦD1 |
E |
F |
L |
Equipped with accumulator model |
Weight (Kg) |
|
NX-KG/Φ89 |
112 |
76 |
110 |
Φ89 |
Φ9 |
62.5 |
20 |
150 |
NXQ-0.4L~0.63L |
0.3 |
|
NX-KG/Φ114 |
137 |
100 |
138 |
Φ114 |
Φ9 |
75 |
20 |
176 |
NXQ-1L |
0.4 |
|
NX-KG/Φ152 |
177 |
126 |
186 |
Φ152 |
Φ11 |
96 |
20 |
212 |
NXQ-1.6L~6.3L |
0.5 |
|
NX-KG/Φ219 |
248 |
196 |
260 |
Φ219 |
Φ13 |
133 |
30 |
306 |
NXQ-10L~40L |
1.1 |
|
NX-KG/Φ299 |
328 |
276 |
350 |
Φ299 |
Φ13 |
173 |
30 |
385 |
NXQ-20L~100L |
1.5 |
|
NX-KG/Φ351 |
396 |
330 |
405 |
Φ351 |
Φ15 |
212 |
40 |
442 |
NXQ-63L~160L |
|
|
NX-KG/Φ426 |
456 |
403 |
478 |
Φ426 |
Φ15 |
237 |
40 |
518 |
NXQ-100L~250L |

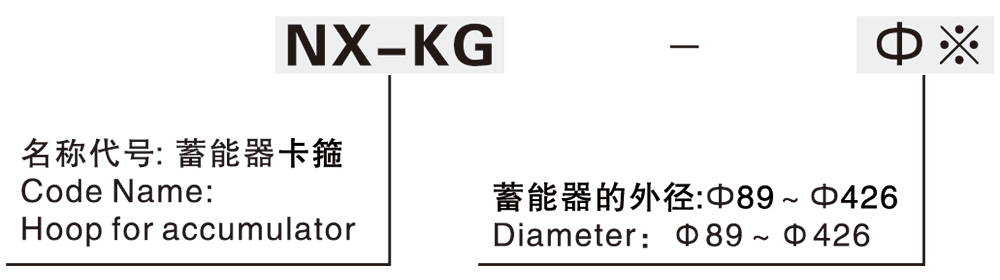

3. Ordering instructions
① The full name of the model code must be stated when ordering, such as: the accumulator has a nominal volume of 25L and a diameter of 0299. Clamp: NX-KG/Φ299. (Include rubber pad)
② If there are special requirements for the clamp, please consult with our company.
③ The company reserves the right to change the design without prior notice.
Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom NX Accumulator fixing clamp Suppliers,The company took part in the establishment of accumulator type national standard.
In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.
Provide you with the latest corporate and industry news
When selecting bladder piston accumulator stations...More>>
Bladder piston accumulator stations play a vital r...More>>
Bladder piston accumulator stations play a crucial...More>>
Bladder piston accumulators play a vital role in o...More>>
Bladder piston accumulator stations assist with sh...More>>
What are the NX accumulator clips used for?
An NX accumulator fixing clamp is a device that is used to secure an accumulator in place. An accumulator is a device that is used to store and release fluid, typically in a hydraulic system.
The purpose of the fixing clamp is to hold the accumulator in position and prevent it from moving or shifting. This helps to ensure the stability and reliability of the accumulator, and helps to prevent damage to the accumulator or the rest of the system.
NX accumulator fixing clamps are typically made of strong, durable materials such as steel or stainless steel, and are designed to withstand the weight and pressure of the accumulator. They may be secured to the accumulator using bolts or other fasteners, and may be adjustable to accommodate different sizes and types of accumulators.
It is important to properly install and maintain the NX accumulator fixing clamp to ensure that it is able to secure the accumulator in place and prevent it from moving or shifting. This includes regularly inspecting and tightening the fasteners, as well as replacing the clamp if it becomes damaged or worn.
