Fixed bracket for NX type accumulator

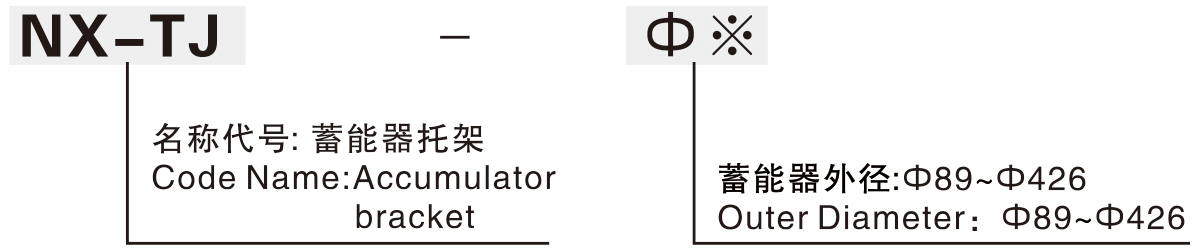

1. Model description

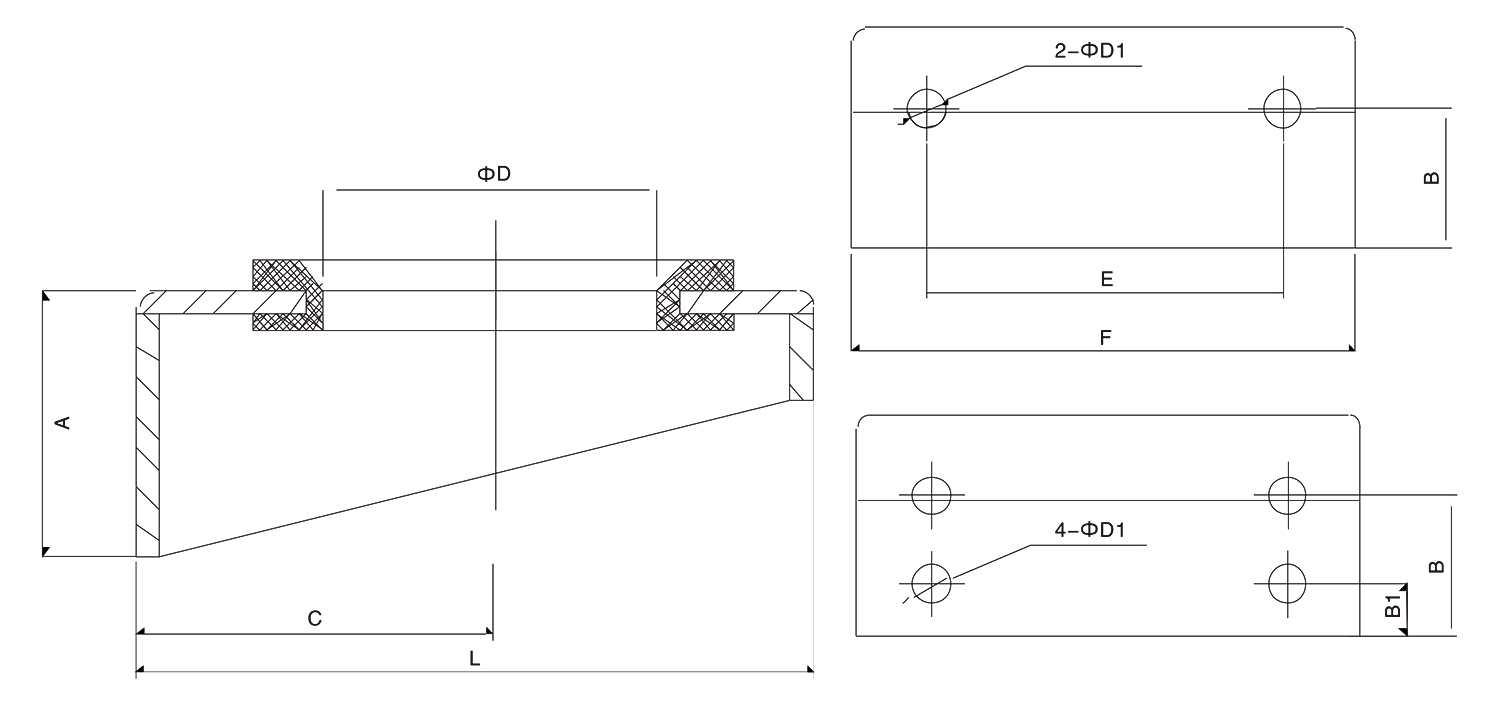

2. Structure and size specifications
|
model |
A |
B |
C |
ΦD |
ΦD1 |
E |
F |
B1 |
L |
Equipped with accumulator model |
weight (Kg) |
|
NX-TJ/Φ89 |
45 |
23 |
62.5 |
Φ60 |
2-Φ9 |
60 |
98 |
/ |
112 |
NXQ-0.4L 〜0.63L |
0.8 |
|
NX-TJ/Φ114 |
50 |
28 |
75 |
Φ60 |
2-Φ9 |
70 |
126 |
/ |
138 |
NXQ-1L |
1 |
|
NX-TJ/Φ152 |
65 |
35 |
96 |
Φ88 |
2-Φ13 |
113 |
162 |
/ |
178 |
NXQ-1.6L~6.3L |
2 |
|
NX-TJ/Φ219 |
100 |
62 |
133 |
Φ125 |
4-Φ17 |
160 |
226 |
22 |
252 |
NXQ-10L~40L |
7 |
|
NX-TJ/Φ299 |
100 |
62 |
173 |
Φ140 |
4-Φ17 |
200 |
306 |
22 |
332 |
NXQ-20L~100L |
12 |
|
NX-TJ/Φ351 |
120 |
70 |
212 |
Φ170 |
4-Φ17 |
280 |
360 |
30 |
412 |
NXQ-63L~160L |
20 |
|
NX-TJ/Φ426 |
120 |
70 |
237 |
Φ220 |
4-Φ17 |
300 |
435 |
30 |
462 |
NXQ-125L~250L |
24 |
3. Ordering instructions
① The full name of the model code must be stated when ordering, such as: the accumulator has a nominal volume of 25L and a diameter of 299. Clamp: NX-TJ/05299. (Include rubber pad)
② If there are special requirements for the clamp, please consult with our company.
3. The company reserves the right to change the design without prior notice.
Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom Fixed bracket for NX type accumulator Suppliers,The company took part in the establishment of accumulator type national standard.
In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.
Provide you with the latest corporate and industry news
When selecting bladder piston accumulator stations...More>>
Bladder piston accumulator stations play a vital r...More>>
Bladder piston accumulator stations play a crucial...More>>
Bladder piston accumulators play a vital role in o...More>>
Bladder piston accumulator stations assist with sh...More>>
What is the use of the NX type accumulator fixing bracket?
The NX type accumulator fixing bracket is a device that is used to secure an accumulator in place. An accumulator is a device that is used to store and release fluid, typically in a hydraulic system.
The purpose of the fixing bracket is to hold the accumulator in position and prevent it from moving or shifting. This helps to ensure the stability and reliability of the accumulator, and helps to prevent damage to the accumulator or the rest of the system.
The NX type accumulator fixing bracket is typically made of strong, durable materials such as steel or stainless steel, and is designed to withstand the weight and pressure of the accumulator. It may be secured to the accumulator using bolts or other fasteners, and may be adjustable to accommodate different sizes and types of accumulators.
It is important to properly install and maintain the NX type accumulator fixing bracket to ensure that it is able to secure the accumulator in place and prevent it from moving or shifting. This includes regularly inspecting and tightening the fasteners, as well as replacing the bracket if it becomes damaged or worn.
