1. Overview

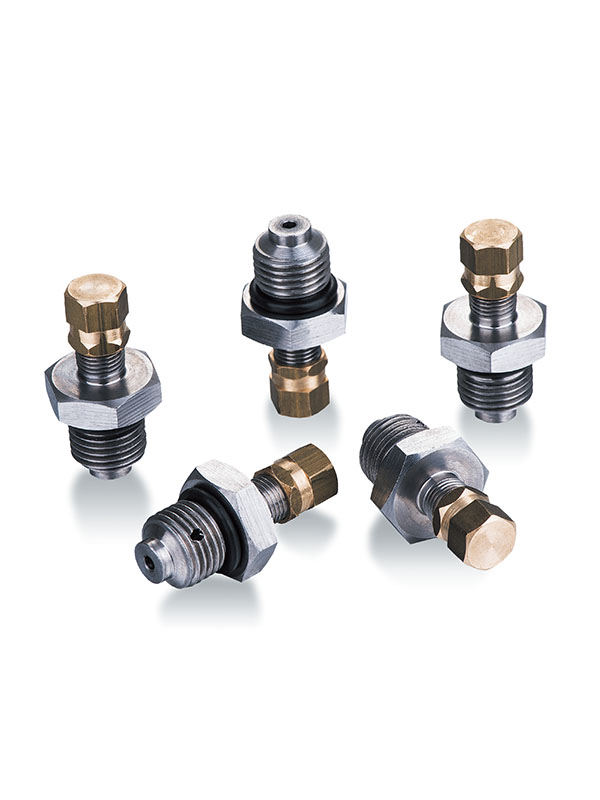

QXF type charging valve is a special one-way valve for charging the accumulator with nitrogen. The charging valve uses a charging tool to charge the accumulator. After the inflation is completed, the inflation tool can be closed automatically after removing the inflation tool.

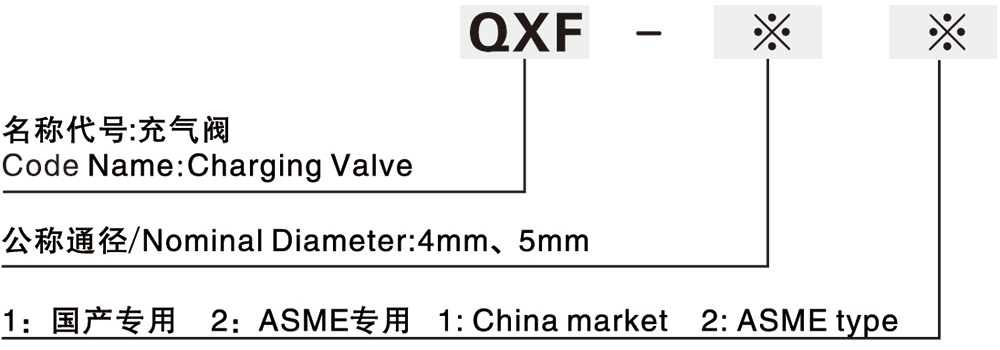

2. Model description

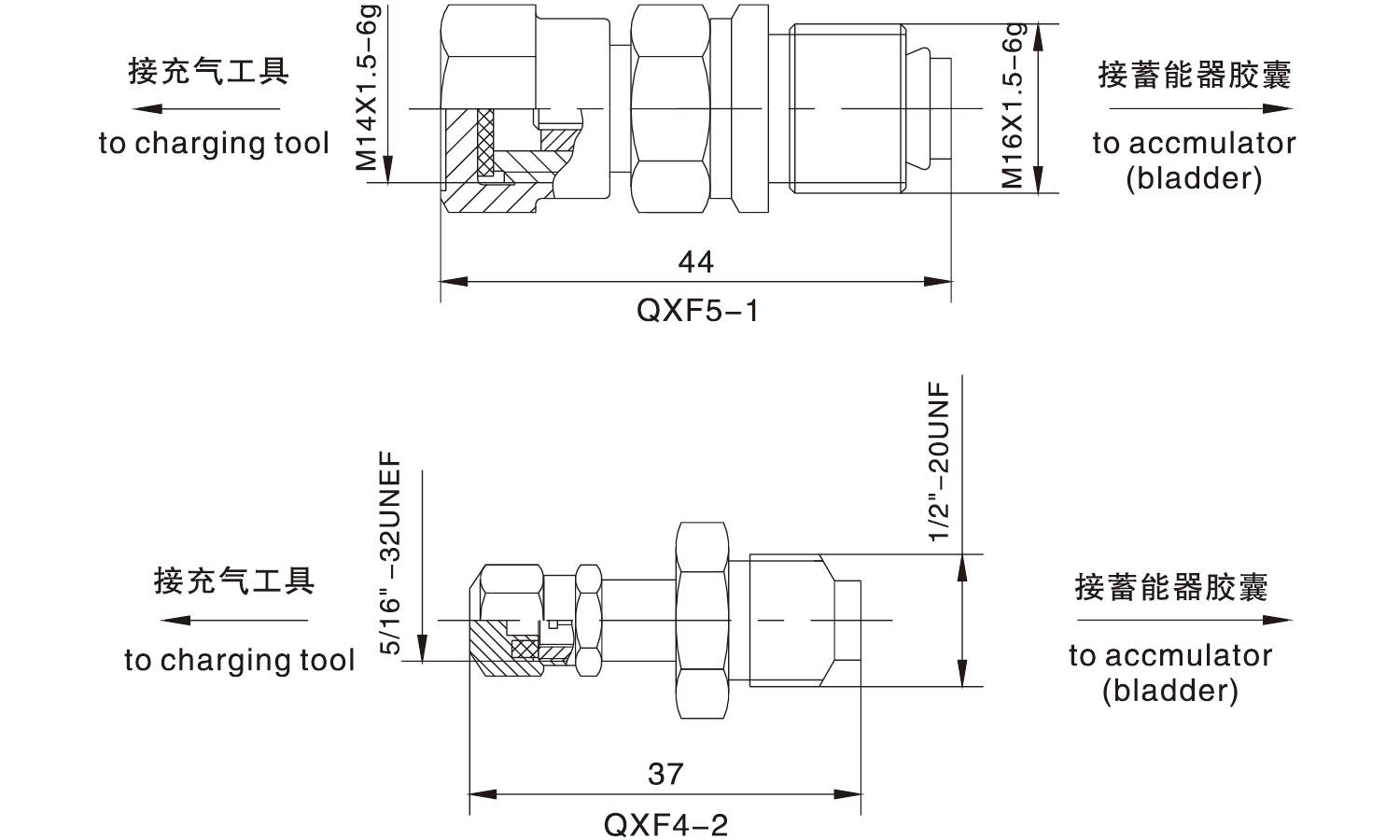

3. Dimensions
4.technical parameters
|
model |
Inflation pressure range (Mpa) |
Nominal diameter (mm) |
Threaded connection |
Equipped with accumulator model |
weight (kg) |
|
|
Imported (connected to nitrogen filling tool) |
Outlet (connect to accumulator) |
|||||
|
QXF5-1 |
0.4-40 |
5 |
M14x1.5-6g |
M16x1.5-6g |
NXQ-0.4 〜250/※-L/F-※ |
0.07 |
|
QXF4-2 |
0.4-40 |
4 |
5/16-32UNF |
1/2-20UNF |
BA(TA)-0.15 〜15/※-※-※ |
0.03 |
① If there are special requirements for inflatable tools, please consult with our company.
②The company reserves the right to change the design without prior notice.
Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom Accumulator Nitrogen Charging one-way Valve Suppliers,The company took part in the establishment of accumulator type national standard.
In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.
Provide you with the latest corporate and industry news
When selecting bladder piston accumulator stations...More>>
Bladder piston accumulator stations play a vital r...More>>
Bladder piston accumulator stations play a crucial...More>>
Bladder piston accumulators play a vital role in o...More>>
Bladder piston accumulator stations assist with sh...More>>
Accumulator Nitrogen Charging one-way Valve
An accumulator nitrogen charging one-way valve is a valve that is used to control the flow of nitrogen gas into an accumulator during the charging process. An accumulator is a device that is used to store and release fluid, typically in a hydraulic system. Nitrogen is a chemical element that is often used to pressurize accumulators.
The purpose of the one-way valve is to allow nitrogen gas to flow into the accumulator, but prevent it from flowing back out. This helps to maintain the pressure within the accumulator and ensures that it is properly charged.
One-way valves are typically made of strong, durable materials such as steel or stainless steel, and are designed to withstand high pressure levels without leaking or failing. They are an important component of the accumulator charging process, and help to ensure the safety and reliability of the accumulator and the overall system.
As OEM Accumulator Nitrogen Charging one-way Valve Factory, the company adheres to the tenet of "integrity-based, excellence" to provide customers with high-quality products and high-quality services.
