AQF accumulator safety ball valve

AQF accumulator safety ball valve

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. The company took part in the establishment of accumulator type national standard.
contact us

Product Details

1. Overview
The AQF accumulator safety ball valve is composed of a stop valve, a safety valve and an unloading valve. It is installed between the accumulator and the hydraulic system to control the on-off, overflow, and unloading of the accumulator oil. condition.

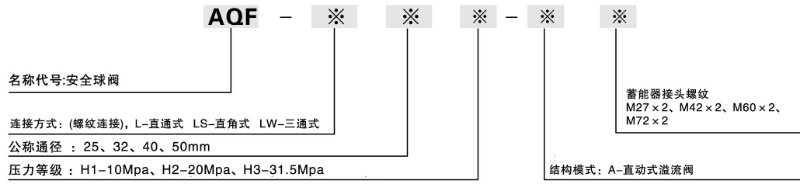

2. Model description

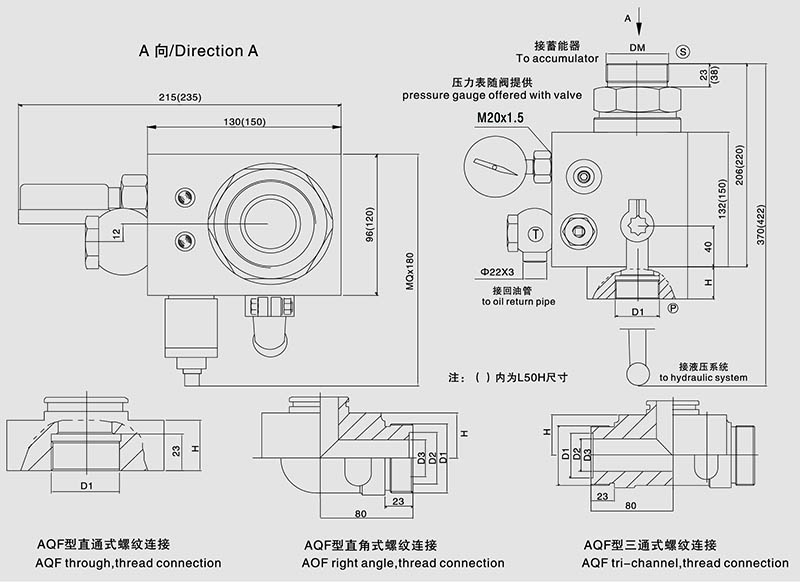

3. Dimensions
4.the adapter
Safety Ball Valve Adapter (Patch Core) (QF-L25~L40) /Safety Valve Adapter
The use of core filling can expand the scope of use of safety ball valves: for example, a 100L accumulator can be equipped with a small diameter safety ball valve through the adjustment of the core filling, which solves the problem of connecting a small diameter to a large accumulator; the reverse is also applicable . At the same time, the problem of interchangeability between imported accumulators and domestic accumulators is solved.

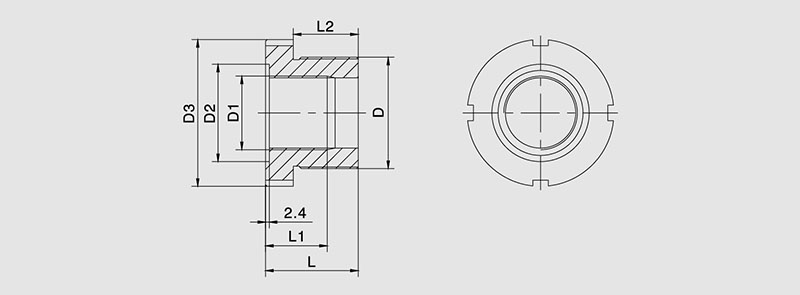

Safety ball valve adapter (filling core) (QF-L25~L40)

Patch core model

D

D1

D2

D3

L

L1

L2

Weight/(Kg)

QF-L25

M60x2

M42x2

68

80

50

28

35

1.52

QF-L40

M72x2

M60x2

80

95

60

38

42

2.15
5.technical specifications

model

Nominal pressure

Surrounding the pressure regulating station)

Nominal diameter

Nominal flow

basic size)

Applicable accumulator model

weight

(kg)

Model

H

D3

D2

D1

DM

For Accumulator

AQF-L25H ※-A

31.5

24

M33x2

M27x2

M42x2

NXQ-1.6- 10 ※-L-A

A〇F-Ls25H ※-A

10

H1=3.5-14

25

100

30

22

35

M42x2

17

A〇F-Lw25H ※-A

AQF-L32H ※-A

31.5

30

M42x2

M42x2

M60x2

A〇F-Ls32H ※-A

20

H2=7-21

32

160

36

26

40

M52x2

17.5

A〇F-Lw32H ※-A

NXQ-10〜 100 ※-L-A

AQF-L40H ※-A

31.5

36

M48x2

M60x2

M72x2

A〇F-Ls40H ※-A

31.5

H3 = 14-31.5

40

250

40

32

45

M60x2

18.5

AQF-Lw40H ※-A

AQF-L50H ※-A

50

500

36

48

M72x2

M72x2

20
6.ordering instructions
①The full name of the model code must be stated when ordering, such as: working pressure is 31.5Mpa, diameter is 20mm, connection is three-way, accumulator joint thread is M42x2, safety ball valve: AQF-LW20H3-A/M42x2
②If there are special requirements for the safety valve group, please consult with our company.
③The company reserves the right to change the design without prior notice.



Related products

  • 15000m²
    Factory Area
  • 1978
    Founded
  • ISO9001
    Quality Certification
  • 45+
    Export Country

Company Profile

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom AQF accumulator safety ball valve Suppliers,The company took part in the establishment of accumulator type national standard.

In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.

Certifications

  • business license

  • Special equipment design license

  • Special equipment manufacturing license

  • Quality Management System Certification ISO English

  • ASME certificate-002

  • Quality management system certification ISO1

  • CE

NEWS

Provide you with the latest corporate and industry news

AQF accumulator safety ball valve

An AQF accumulator safety ball valve is a type of ball valve that is used to shut off the flow of fluid in a hydraulic accumulator in the event of an emergency or malfunction.
The valve consists of a spherical ball that is connected to a stem and a handle or actuator. When the handle is turned to the closed position, the ball is rotated to a position that blocks the flow of fluid through the valve. When the handle is turned to the open position, the ball is rotated to a position that allows the fluid to flow through the valve.
The AQF accumulator safety ball valve is typically installed in the accumulator and is connected to a control system that monitors the condition of the accumulator and activates the valve when necessary. The valve is designed to protect the accumulator and the rest of the hydraulic system from damage or failure, and is an important safety feature that helps to ensure the safe and reliable operation of the system.
It is important to regularly inspect and maintain the AQF accumulator safety ball valve to ensure that it is functioning properly and is able to protect the accumulator and the rest of the hydraulic system in the event of an emergency.
