KHP Plate ball valve Factory

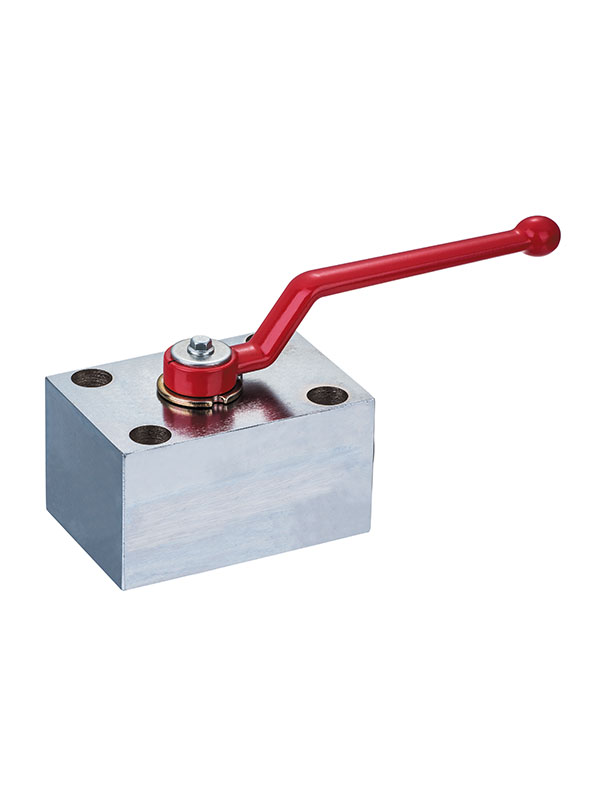

KHP Plate ball valve

KHP Plate ball valve

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. The company took part in the establishment of accumulator type national standard.
contact us

Product Details

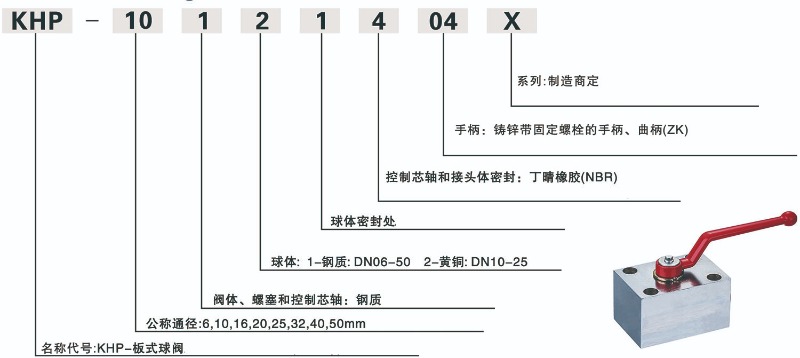

1. Model description

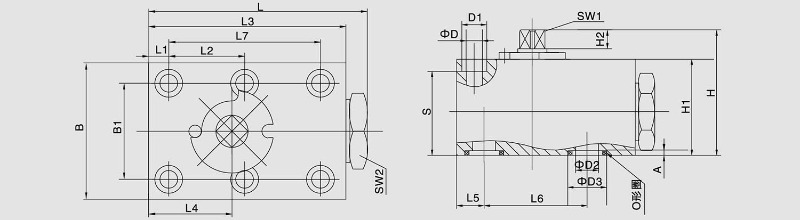

2. Dimensions
3. Connection form and technical parameters

Model/nominal diameter

DN

LW

L

L1

L2

L3

L4

L5

L6

L7

B

B1

PN(bar)

KHP-06

6

6

64

9.5

17.5

59

24.5

9.5

35

35

42

27

500

KHP-10

10

9.5

80

8.5

27.5

72

29

10

44

55

56

40

315

KHP-16

16

16

110

8.5

41.5

100

44.5

17

58

83

60

45

315

KHP-20

20

20

127

10

48.5

119

51

20

69

97

70

51

315

KHP-25

25

23.5

145

11

57.5

135

62

24

81

115

80

60

315

KHP-32

32

30

176

12

68

165

75.0

29

96

136

100

78

315

KHP-40

40

38

205

28.5

56

190

85.5

28.5

112

112

130

95

315

KHP-50

50

48

245

38

68

230

106

38

136

136

149

112

315

Model/nominal diameter

SW1

SW2

H

H1

H2

D

D1

D2

D3

A

S

O-ring

KHP-06

6

22

37

33

7

6

10.5

6

12

1.28

23

8.75x1.8

KHP-10

9

30

58

42

8.5

9

14

9.5

17

1.97

36

11.8x2.65

KHP-16

9

36

72.5

48

11

9

14

16

25

1.97

46

20x2.65

KHP-20

12

41

88.5

56

11

10.5

16.5

20

30

1.97

59.5

25x2.65

KHP-25

12

50

97.5

63

11

10.5

17

23.5

35

1.97

69

30x2.65

KHP-32

14

65

118.5

76

12

13

19.5

32

40

1.97

84.5

35.5x2.65

KHP-40

14

70

118.5

90

12

17

26

38

50

2.75

82.5

43.5x3.55

KHP-50

16

85

129

108

12

21

33

48

60

2.75

88.5

53x3.55



Related products

  • 15000m²
    Factory Area
  • 1978
    Founded
  • ISO9001
    Quality Certification
  • 45+
    Export Country

Company Profile

Ningbo Chaori Hydraulic Co .,Ltd. is located in National AAAAA scenic resort Xikou town,Fenghua, Ningbo.The company covers an area of 18000 square meters, and has been equipped with perfect manufacturing machines and detecting instruments. lt passed the lSO9001-2000 certification in 2000,and had the important certificates and licenses, including the Special Equipment Designing and Manufacture License issued by General Administration of Quality Supervision ,Inspection and Quarantine, of China，ASME manufacture certificate of pressure vessel ,and EU CE certificate. As China Custom KHP Plate ball valve Suppliers,The company took part in the establishment of accumulator type national standard.

In 2005,the company set up its own engineering and research&development center.The company had been recognized as the national high and new tech enterprises .We specialize in design manufacture of hydraulic components and systems. Being the member of China lron and Steel Association(CISA) in the field of metallurgical equipments and the member of China Hydraulics Pneumatics&Seals Association.

Certifications

  • business license

  • Special equipment design license

  • Special equipment manufacturing license

  • Quality Management System Certification ISO English

  • ASME certificate-002

  • Quality management system certification ISO1

  • CE

NEWS

Provide you with the latest corporate and industry news

KHP Plate ball valve

A KHP plate ball valve is a type of valve that uses a flat, disc-shaped element called a plate to open and close the flow of fluid through the valve. The plate is typically made of a strong, durable material such as steel or stainless steel, and is connected to a stem that is in turn connected to a handle or actuator.
When the handle is turned to open the valve, the plate is rotated to a position that allows fluid to flow through the valve. When the handle is turned to close the valve, the plate is rotated to a position that blocks the flow of fluid.
KHP plate ball valves are typically used in high pressure fluid handling systems, such as hydraulic systems, oil and gas pipelines, and chemical processing plants. They are known for their high strength and durability, and are able to withstand high pressure levels without leaking or failing. They are also relatively easy to operate and maintain, making them a popular choice for a wide range of applications.
